阿里AI训练营【车辆保险应用】

@TOC

</font>

前言

<font color=#999AAA >转载于：【阿里云高校计划】车辆保险应用 day4 【拨云见日】</font>

实施前准备工作

一、本地图片上传为OSS

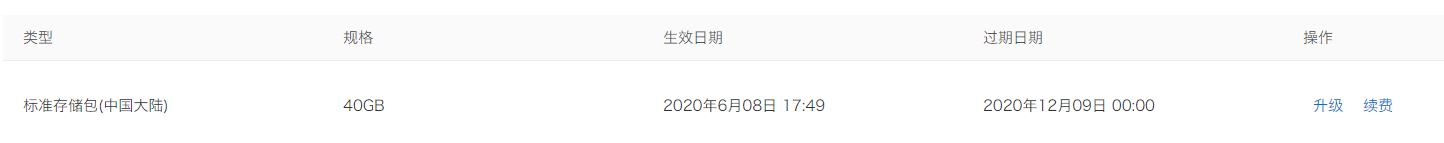

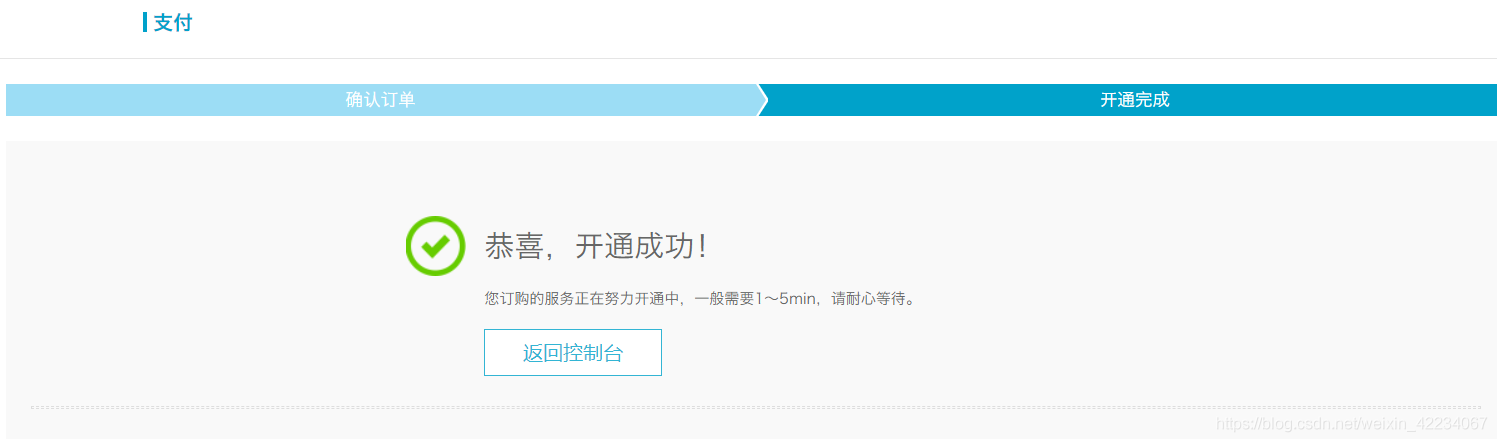

1.开通oss

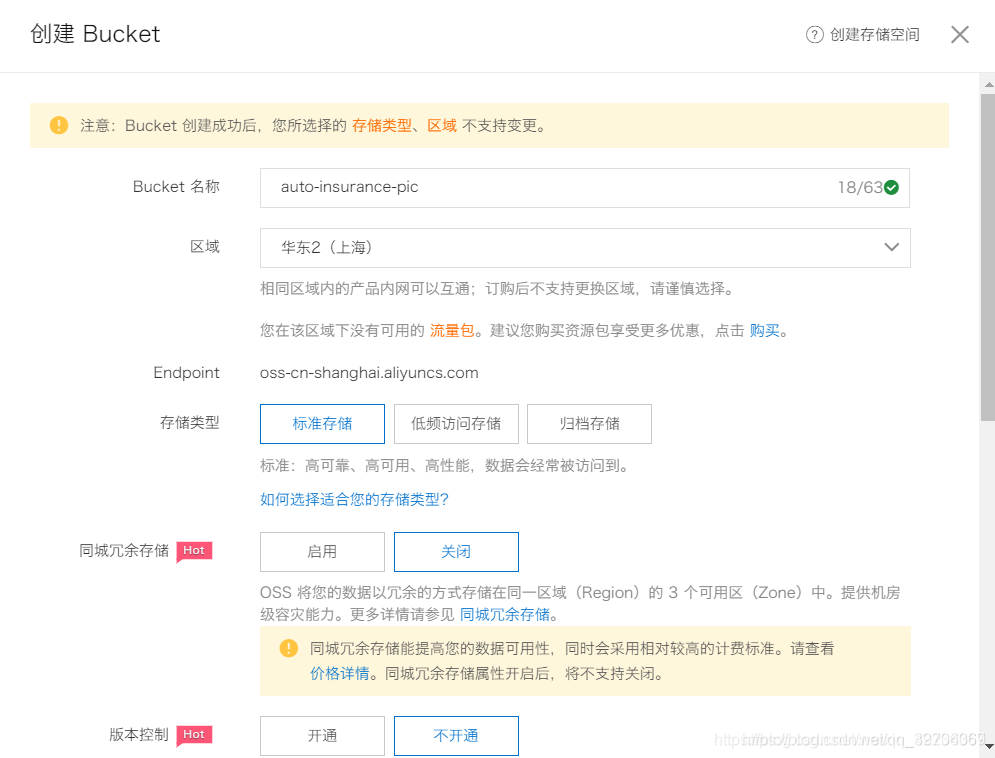

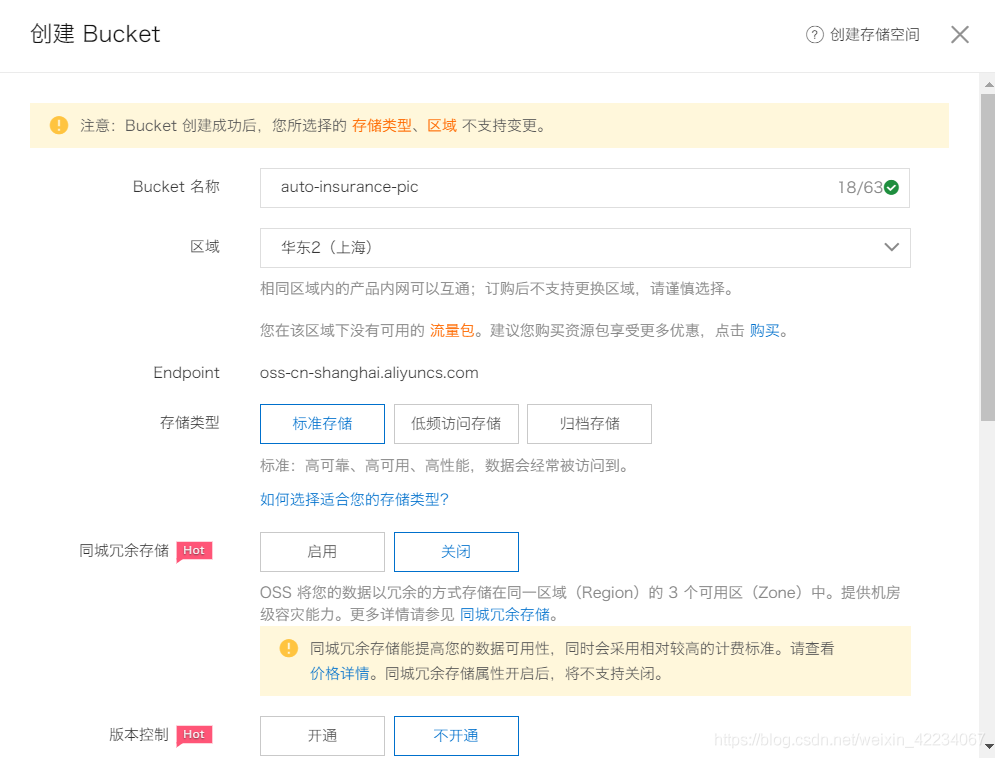

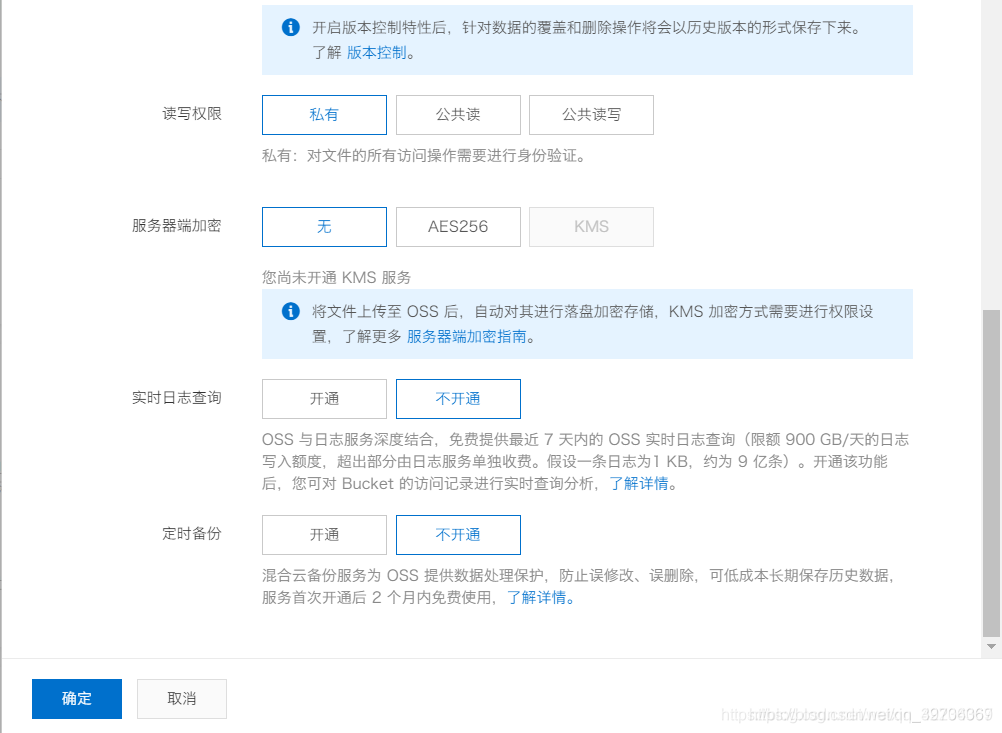

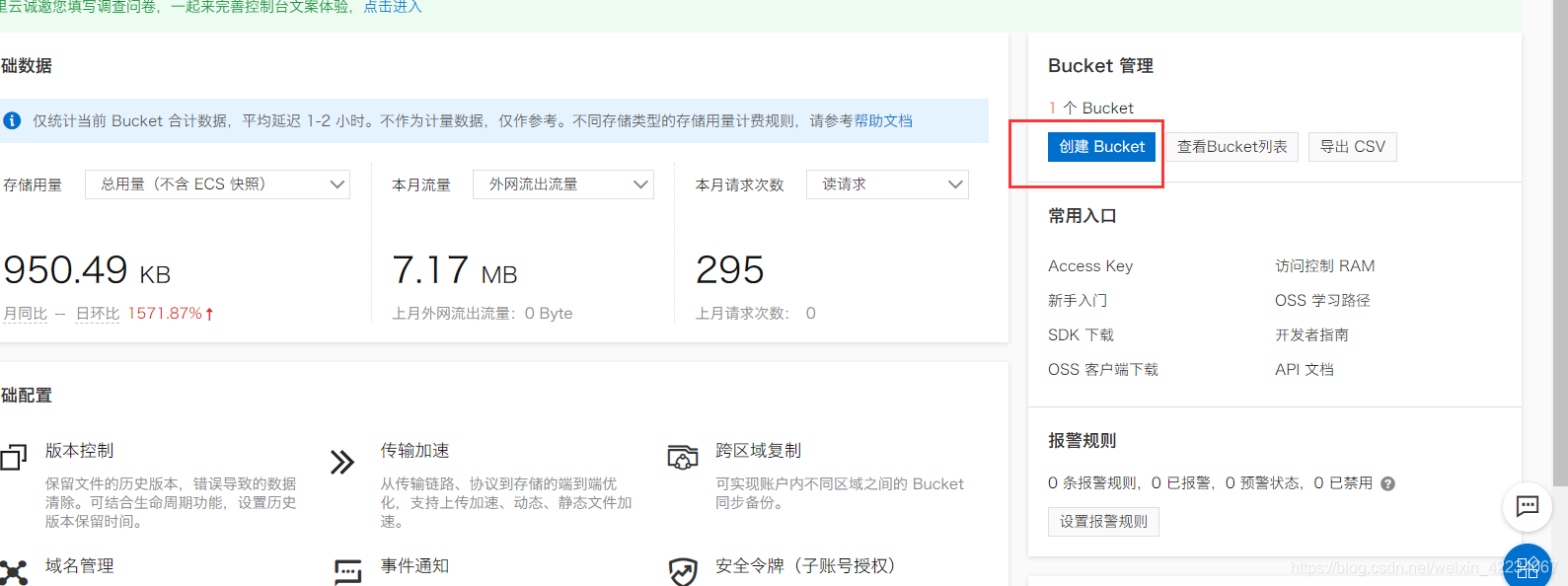

2.创建Bucket

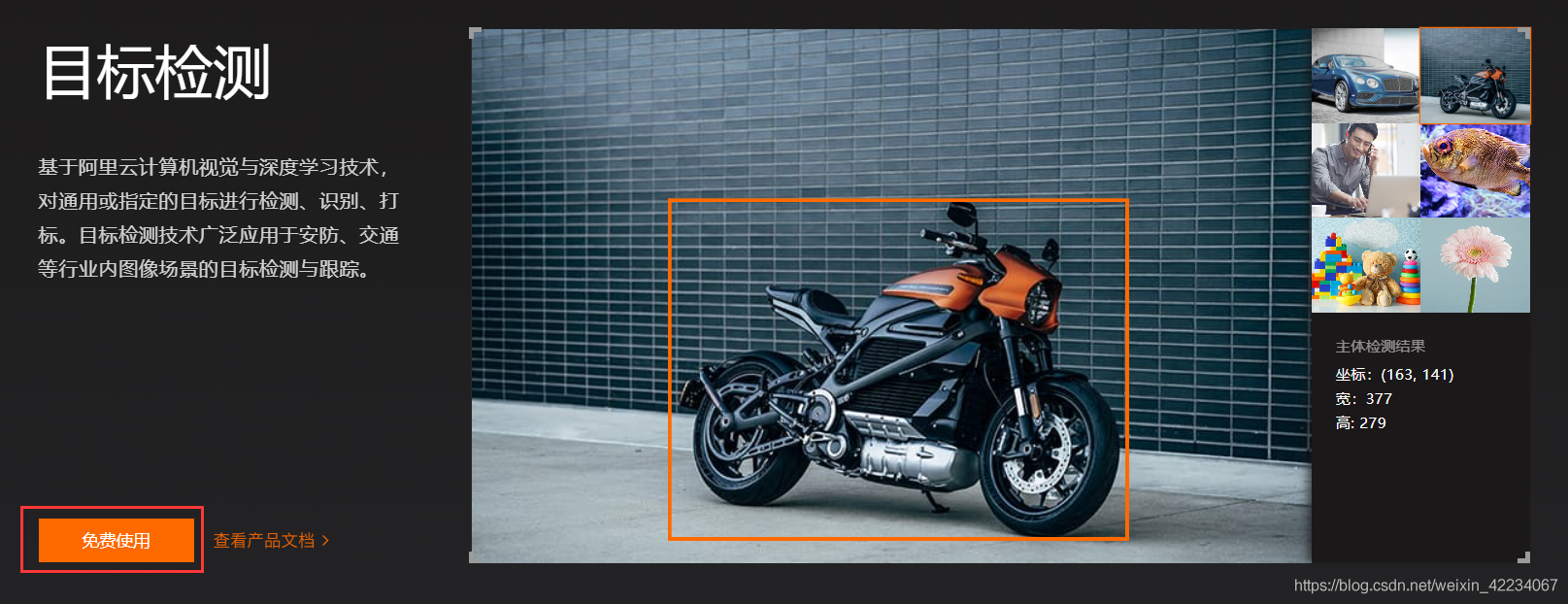

二、开通目标检测服务

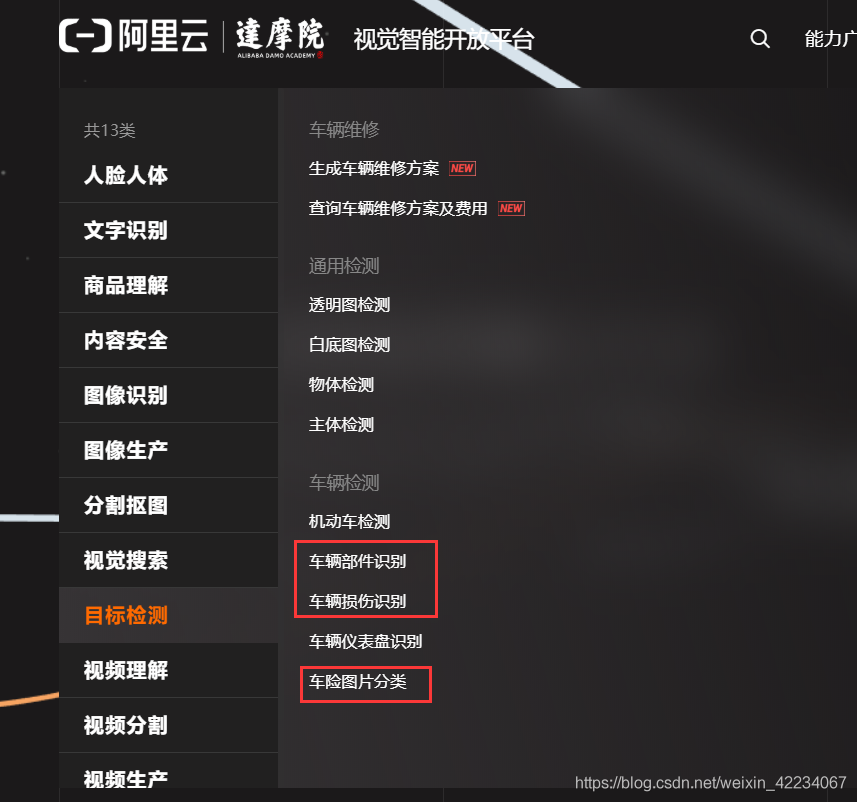

阿里云视觉智能开放平台--目标检测

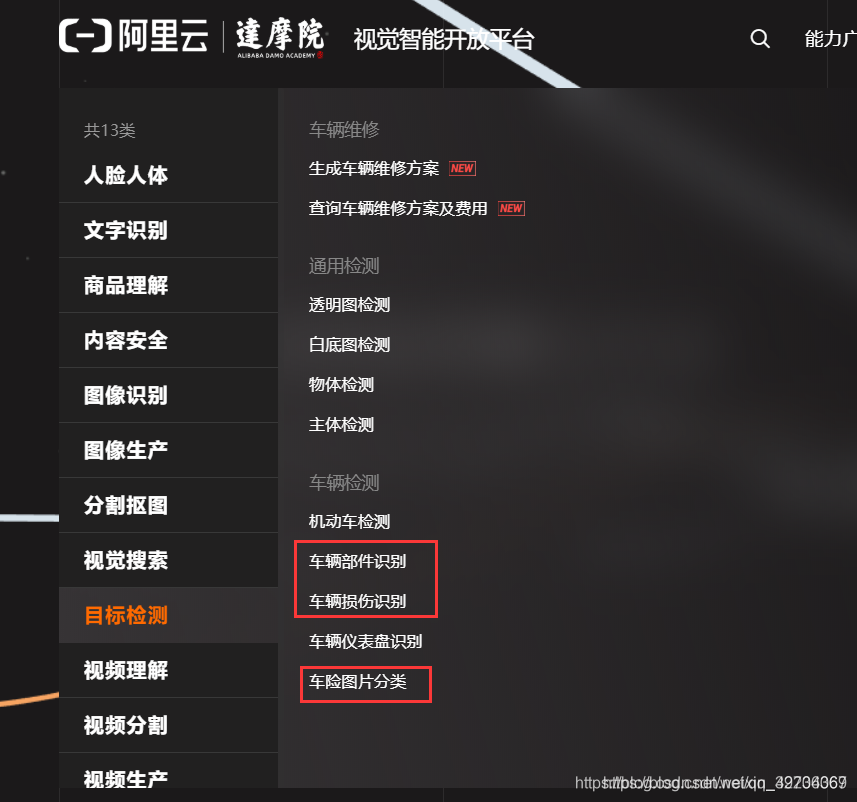

三、查看所需API

这里我们用到阿里云视觉智能开放平台提供的三个功能：

• 车辆部件识别
• 车辆损伤识别
• 车险图片分类

1.车辆部件识别

检测图片中车辆部件的位置以及名称。

2.车辆损伤识别

针对常见小汽车车型，识别车辆外观受损部件及损伤类型，可识别数十种车辆部件、五大类外观损伤。（刮擦、凹陷、开裂、褶皱、穿孔）

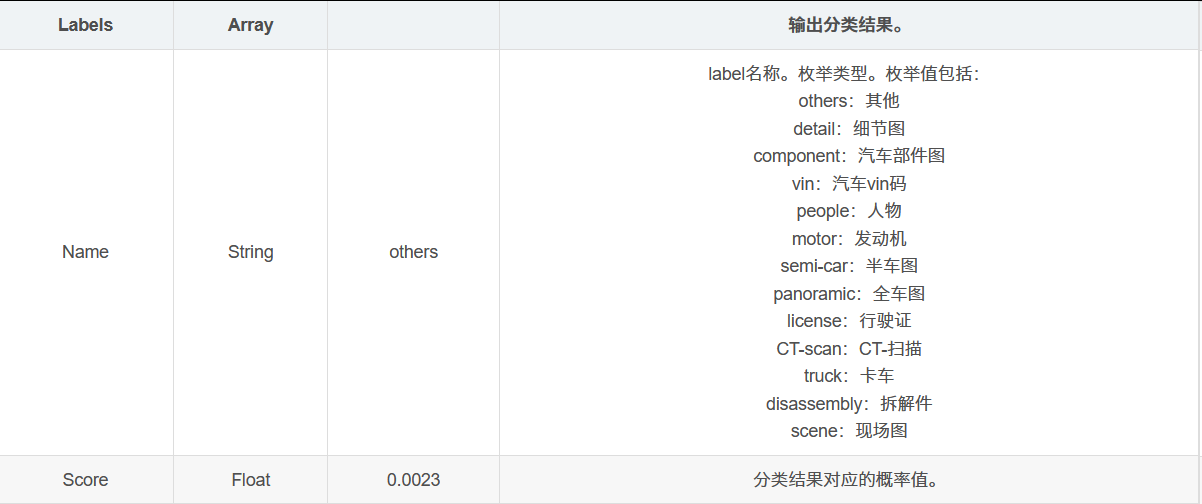

3.车险图片分类

对输入的车险图片进行分类。

具体实施

一、本地图片上传至OSS的uploadPic类

车辆部件识别

1.在maven中导入所需依赖

<dependency>
    <groupId>com.aliyun.oss</groupId>
    <artifactId>aliyun-sdk-oss</artifactId>
    <version>3.8.0</version>
</dependency>

2.编写UploadPic类

package com.example.demo;

import com.aliyun.oss.OSS;
import com.aliyun.oss.OSSClientBuilder;

import java.io.File;
import java.net.URL;
import java.security.SecureRandom;
import java.util.Date;
import java.lang.*;
import java.util.Scanner;

public class UploadPic {
    public static String UploadPic(){
        // Endpoint以杭州为例，其它Region请按实际情况填写。
        String endpoint = "oss-cn-shanghai.aliyuncs.com";
        // 阿里云主账号AccessKey。
        String accessKeyId = "*************";
        String accessKeySecret = "*************";
        //本地文件名
        System.out.println("请输入本地图片path:");
        Scanner scanner = new Scanner(System.in);
        String fileName = scanner.nextLine();
        String bucketName = "auto-insurance-pic";
        // 获取文件的后缀名
        String suffixName = fileName.substring(fileName.lastIndexOf("."));

        // 生成上传文件名
        String objectName = System.currentTimeMillis() + "" + new SecureRandom().nextInt(0x0400) + suffixName;


        // 创建OSSClient实例。
        OSS ossClient = new OSSClientBuilder().build(endpoint, accessKeyId, accessKeySecret);


        // 如果需要上传时设置存储类型与访问权限，请参考以下示例代码。
        // ObjectMetadata metadata = new ObjectMetadata();
        // metadata.setHeader(OSSHeaders.OSS_STORAGE_CLASS, StorageClass.Standard.toString());
        // metadata.setObjectAcl(CannedAccessControlList.Private);
        // putObjectRequest.setMetadata(metadata);

        // 上传文件。
        ossClient.putObject(bucketName, objectName, new File(fileName));
        // 设置URL过期时间为1小时。
        Date expiration = new Date(System.currentTimeMillis() + 3600 * 1000);
        // 生成以GET方法访问的签名URL，访客可以直接通过浏览器访问相关内容。
        URL url = ossClient.generatePresignedUrl(bucketName, objectName, expiration);

        // 关闭OSSClient。
        ossClient.shutdown();

        return url.toString();
    }
}

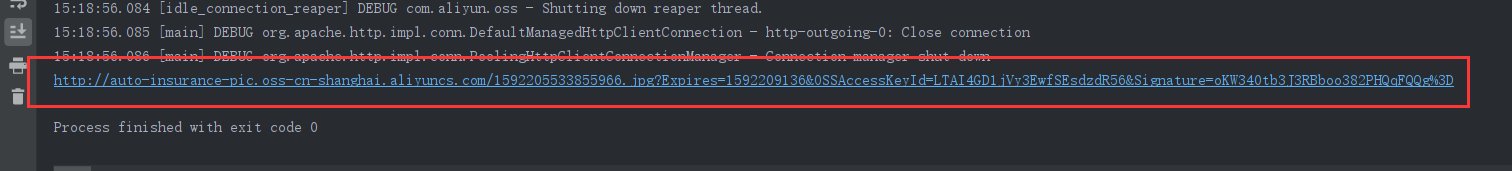

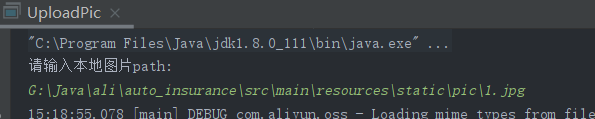

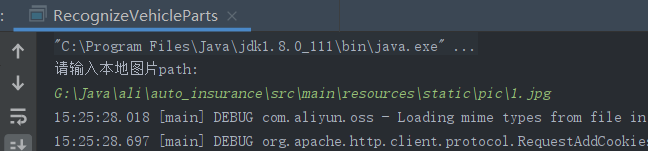

3.运行结果

二、车辆部件识别RecognizeVehicleParts类

1.在maven中导入所需依赖

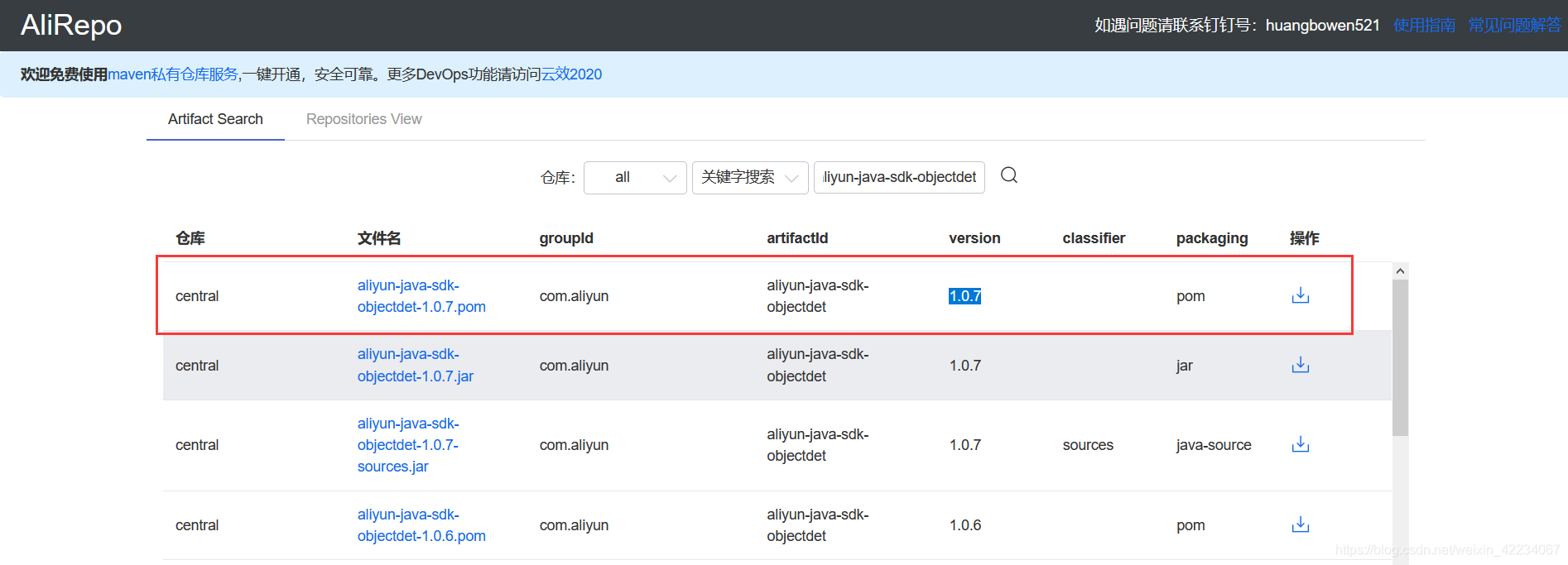

阿里maven私有仓库服务

<dependency>
    <groupId>com.aliyun</groupId>
    <artifactId>aliyun-java-sdk-core</artifactId>
    <version>4.4.8</version>
</dependency>
<dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>fastjson</artifactId>
    <version>1.2.52</version>
</dependency>
<dependency>
    <groupId>com.aliyun</groupId>
    <artifactId>aliyun-java-sdk-objectdet</artifactId>
    <version>1.0.7</version>
</dependency>

2.编写RecognizeVehicleParts类

package com.example.demo;

import com.aliyuncs.DefaultAcsClient;
import com.aliyuncs.IAcsClient;
import com.aliyuncs.exceptions.ClientException;
import com.aliyuncs.exceptions.ServerException;
import com.aliyuncs.profile.DefaultProfile;
import com.example.demo.UploadPic;
import com.google.gson.Gson;
import java.util.*;
import com.aliyuncs.objectdet.model.v20191230.*;

public class RecognizeVehicleParts {

    public static void main(String[] args) {
        DefaultProfile profile = DefaultProfile.getProfile("cn-shanghai", "accessKeyId", "accessKeySecret");
        IAcsClient client = new DefaultAcsClient(profile);

        RecognizeVehiclePartsRequest request = new RecognizeVehiclePartsRequest();
        request.setRegionId("cn-shanghai");
        request.setImageURL(UploadPic.UploadPic());

        try {
            RecognizeVehiclePartsResponse response = client.getAcsResponse(request);
            System.out.println(new Gson().toJson(response));
        } catch (ServerException e) {
            e.printStackTrace();
        } catch (ClientException e) {
            System.out.println("ErrCode:" + e.getErrCode());
            System.out.println("ErrMsg:" + e.getErrMsg());
            System.out.println("RequestId:" + e.getRequestId());
        }
    }
}

3.运行结果

返回值为：

{"requestId":"BBFB102D-5EAC-483F-9A94-9DA79A06E1F6","data":{"elements":[{"score":0.98788995,"type":"left_tail_light","boxes":[132,274,862,607]},{"score":0.952229,"type":"left_rear_wing","boxes":[4,162,365,750]},{"score":0.74785864,"type":"rear_bumper","boxes":[60,456,987,760]}],"originShapes":[768,1024]}}

三.车辆损伤识别

1.在maven中导入所需依赖

见本文二-1

2.编写RecognizeVehicleDamage类

package com.example.demo;

import com.aliyuncs.DefaultAcsClient;
import com.aliyuncs.IAcsClient;
import com.aliyuncs.exceptions.ClientException;
import com.aliyuncs.exceptions.ServerException;
import com.aliyuncs.profile.DefaultProfile;
import com.google.gson.Gson;
import java.util.*;
import com.aliyuncs.objectdet.model.v20191230.*;

public class RecognizeVehicleDamage {

    public static void main(String[] args) {
        DefaultProfile profile = DefaultProfile.getProfile("cn-shanghai", "accessKeyId", "accessKeySecret");
        IAcsClient client = new DefaultAcsClient(profile);

        RecognizeVehicleDamageRequest request = new RecognizeVehicleDamageRequest();
        request.setRegionId("cn-shanghai");
        request.setImageURL(UploadPic.UploadPic());

        try {
            RecognizeVehicleDamageResponse response = client.getAcsResponse(request);
            System.out.println(new Gson().toJson(response));
        } catch (ServerException e) {
            e.printStackTrace();
        } catch (ClientException e) {
            System.out.println("ErrCode:" + e.getErrCode());
            System.out.println("ErrMsg:" + e.getErrMsg());
            System.out.println("RequestId:" + e.getRequestId());
        }
    }
}

3.识别结果

返回值为：

{"requestId":"7FFBD390-7019-4B85-9FFA-779C912A9CEB","data":{"elements":[{"score":0.414995,"type":"1","scores":[0.414995,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0],"boxes":[343,390,473,542]},{"score":0.408405,"type":"1","scores":[0.408405,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0],"boxes":[541,442,659,545]},{"score":0.348472,"type":"1","scores":[0.348472,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0],"boxes":[273,293,423,400]},{"score":0.378637,"type":"2","scores":[0.0,0.378637,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0],"boxes":[261,26,496,142]},{"score":0.873101,"type":"5","scores":[0.0,0.0,0.0,0.0,0.873101,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0],"boxes":[91,4,555,267]},{"score":0.815785,"type":"6","scores":[0.0,0.0,0.0,0.0,0.0,0.815785,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0],"boxes":[564,270,869,441]},{"score":0.845525,"type":"8","scores":[0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.845525,0.0,0.0,0.0,0.0,0.0,0.0,0.0],"boxes":[230,234,529,313]},{"score":0.411336,"type":"11","scores":[0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.411336,0.0,0.0,0.0,0.0],"boxes":[632,425,922,563]},{"score":0.334054,"type":"11","scores":[0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.334054,0.0,0.0,0.0,0.0],"boxes":[538,91,733,194]},{"score":0.333818,"type":"11","scores":[0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.333818,0.0,0.0,0.0,0.0],"boxes":[694,157,899,286]},{"score":0.32519,"type":"11","scores":[0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.32519,0.0,0.0,0.0,0.0],"boxes":[523,87,902,278]}]}}

四.车险图片分类

1.在maven中导入所需依赖

见本文二-1

2.编写ClassifyVehicleInsurance类

package com.example.demo;

import com.aliyuncs.DefaultAcsClient;
import com.aliyuncs.IAcsClient;
import com.aliyuncs.exceptions.ClientException;
import com.aliyuncs.exceptions.ServerException;
import com.aliyuncs.profile.DefaultProfile;
import com.google.gson.Gson;
import java.util.*;
import com.aliyuncs.objectdet.model.v20191230.*;

public class ClassifyVehicleInsurance {

    public static void main(String[] args) {
        DefaultProfile profile = DefaultProfile.getProfile("cn-shanghai", "accessKeyId", "accessKeySecret");
        IAcsClient client = new DefaultAcsClient(profile);

        ClassifyVehicleInsuranceRequest request = new ClassifyVehicleInsuranceRequest();
        request.setRegionId("cn-shanghai");
        request.setImageURL(UploadPic.UploadPic());

        try {
            ClassifyVehicleInsuranceResponse response = client.getAcsResponse(request);
            System.out.println(new Gson().toJson(response));
        } catch (ServerException e) {
            e.printStackTrace();
        } catch (ClientException e) {
            System.out.println("ErrCode:" + e.getErrCode());
            System.out.println("ErrMsg:" + e.getErrMsg());
            System.out.println("RequestId:" + e.getRequestId());
        }
    }
}

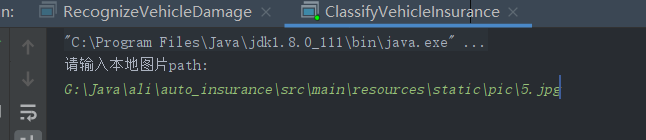

3.识别结果

返回值为：

{"requestId":"87BEADED-F581-4C38-9F5F-E6F8DF0A1BA5","data":{"threshold":0.0,"labels":[{"score":0.0046,"name":"others"},{"score":0.0164,"name":"detail"},{"score":0.1934,"name":"component"},{"score":0.0,"name":"vin"},{"score":8.0E-4,"name":"people"},{"score":2.0E-4,"name":"motor"},{"score":0.1439,"name":"semi-car"},{"score":0.0027,"name":"panoramic"},{"score":3.0E-4,"name":"license"},{"score":0.0169,"name":"CT-scan"},{"score":5.0E-4,"name":"truck"},{"score":0.0144,"name":"disassembly"},{"score":0.6059,"name":"scene"}]}}
